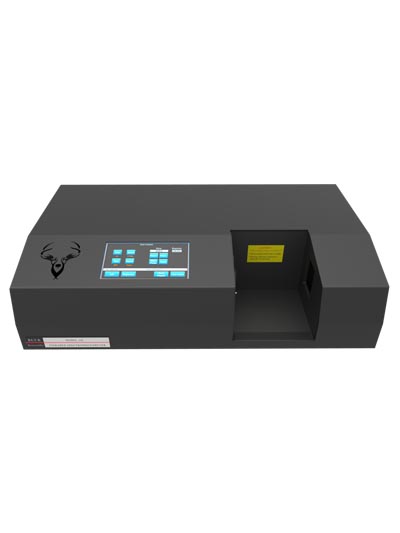

Buck M530 Quick-Scan Infrared Spectrophotometer

The Buck Scientific Model 530 IR is a dispersive infrared spectrophotometer which scans like a UV/Vis Spectrophotometer in the mid-infrared region (4000 – 600cm-1, or 2500.00 nm – 16666.67 nm) with a resolution of <3cm-1 from 4000cm-1 – 2000cm-1 and <2cm -1 from 2000cm -1 – 600cm -1. We use aircraft grade aluminum for all Buck instruments and powder coated textured finish for corrosion resistance. The M530 is an accurate and simple IR Spectrophotometer which is built to last and easy to maintain.

The M530 can communicate with external programs using either USB or RS-232 connections. The new design uses stronger stepping motors providing faster completion of “Go-To” commands. The Model M530 display is a touch screen. There are no buttons or switches on the face of the instrument. Touching the display screen accesses all of the instruments standalone functions. Spectra can be viewed on the instruments display screen during scans. This allows running survey scans without using a companion computer. Simplified stand-alone reporting provides tools for presenting measurement values as ratios in either Percent Transmission or Absorbance scales.

Our IR instrument uses a high energy optical design and a sensitive DLATGS detector for excellent resolution over the full infrared range. Maximum performance is achieved with a fast scanning mechanism that is completely microprocessor driven. Every unit is built by hand – in the USA – to meet the highest quality standards. The straight forward mechanical and optical design has a reputation for low maintenance and is easily serviceable with quality affordable parts. The system is intrinsically rugged and performs well in even the harshest environments.

Request A Quote
