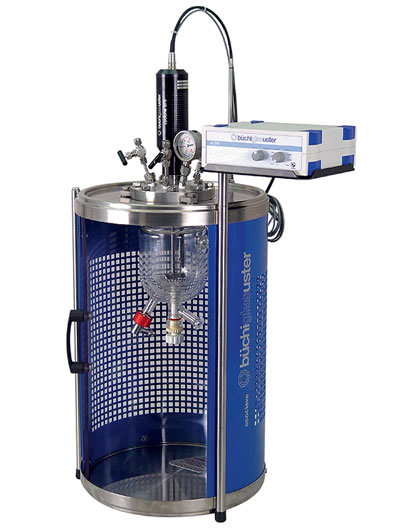

ecoclave
Laboratory pressure reactor system
Reactor volume: 0.25 – 5.0 liter
Pressure: -1 (FV) to +60 / 200 bar
Temperature: – 20 °C to +250 °C
Material: Borosilicate glass 3.3, stainless steel, Hastelloy
This multipurpose pressure reactor system is designed for the use of interchangeable glass – and steel pressure vessels. Safety features guarantee safe reactions under pressure.
The glass reactors ensure high resistance against acids, while allowing visual process control and monitoring. This is also possible under high pressure by using steel pressure vessels with sight glasses. Various low to high torque magnetic drives ensure efficient mixing and stirring low to high viscosity process media as well as excellent heat transfer.
The modular setup of the ecoclave system allows changing or upgrading for new tasks at any time.
A wide range of accessories for feeding of liquids / solids / gas, and others like catalyst baskets, etc. are available – talk to us to define the right setup for your specific need.
Standard package
- Safety housing with polycarbonate sliding door for safe operation of glass pressure vessels
- Pressure vessel in glass, steel / Hastelloy with suitable stirrer shaft, stirrer, baffle, Pt-100, bottom valve depending on vessel type
- Cover plate with 7 openings and standard setup:
- Swagelok fittings with bursting disc, manometer and 2 valves
- Stirrer drive «cyclone 075» with integrated high torque magnetic coupling, incl. controller «cc075»
- Tools and spare parts
Standard options
- cyclone 300 stirrer drive
- Electric heating / water cooling
- Measure and control systems
- Wide range of accessories
- 200 bar version
- Hydrogenation reactor
- Polymerization reactor
- Synthesis reactor
- Catalyst testing / evaluation
- Catalytic reactor
- Crystallization
- Chemical research
- Petrochemical research
- Corrosion Measurement
- Upstream research
- Biomass research
- Biopolymer research
- Biorefinery research
- Biofuels research
- Zeolite synthesis
- Nanoparticle synthesis
- Corrosion testing autoclave
see-through glass pressure vessel- Catalyst testing reactor
