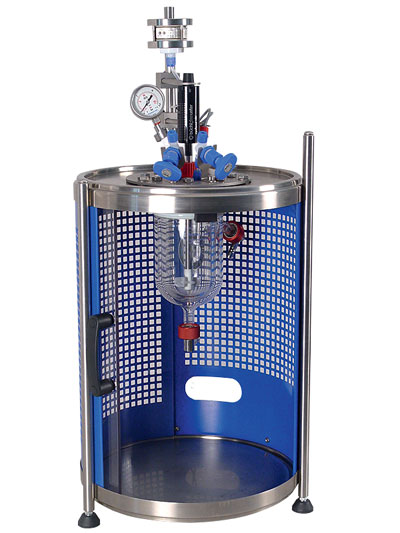

inertclave
Inert laboratory pressure reactor system
Reactor: 0.5 – 1.0 liter
Pressure: -1 (FV) to +6 bar
Temperature: -20 °C to +180 °C
Material: Borosilicate glass 3.3, PTFE, PFA, PEEK
This multipurpose pressure reactor system is designed for the use of interchangeable glass pressure vessels. Safety features guarantee safe reactions under pressure.
The glass reactors ensure high resistance against acids, while allowing visual process control and monitoring. All product touched parts are made of inert (non-metallic) materials. The cyclone «i» magnetic drive is used for low viscosity process media, the cyclone 250 «i» magnetic drive offers excellent mixing of high viscose media – both versions are fully inert.
The modular setup of the inertclave system allows changing or upgrading for new tasks at any time.
A wide range of accessories for feeding of liquids / solids / gas, and others are available – talk to us to define the right setup for your specific need.
Package standard
- Safety housing with polycarbonate sliding door for safe operation of glass pressure vessels
- Glass pressure vessel with suitable stirrer shaft, stirrer, Pt-100, bottom valve depending on vessel type
- Cover plate with 6 openings and standard setup:
Swagelok fittings with bursting disc, manometer and 2 valves - Magnetic stirrer drive cyclone «i» with integrated speed controller
- Tools and spare parts
Standard options
- High torque magnetic coupling bmd 250 «i» ATEX
- High torque magnetic stirrer drive cyclone 250 «i»
with integrated ceramic magnetic coupling, incl. controller «cc300» - measure and control systems
- Hydrogenation reactor
- Polymerization reactor
- Synthesis reactor
- Catalyst testing / evaluation
- Catalytic reactor
- Crystallization
- Corrosion measurement
- Chemical research
- Petrochemical research
- Biopolymer research
- Nanoparticle synthesis
- Materials testing
- Corrosion testing autoclave
metal-free Lab autoclaves- metal-free magnetic drives
- see-through glass pressure vessel
