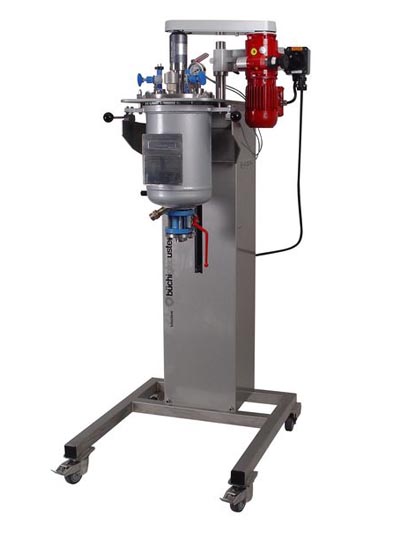

kilo-, verso-, polyclave inert
Laboratory pressure reactor system – metal-free executions
Reactor volume: 1.0 – 20.0 liter
Pressure: -1 (FV) to +6 / 60 bar
Temperature: -20 °C to +180 / 250 °C
Material: 6 bar version: Glass, Glass lined steel, ceramic, PFA, PEEK, PTFE
Material: 60 bar version: Glass lined steel, ceramic, PFA, PTFE, Tantalum
This multipurpose pressure reactor system ensures high resistance against acids, avoiding contamination or interference of any type of metal components with the chemicals. It is designed for the use of glass lined steel pressure vessels with ceramic magnetic stirrer coupling and reinforced PTFE cover or with Tantalum cover for higher pressure.
The hydraulic vessel lift with tilt function makes opening and closing as well as cleaning of the vessel very easy. Safety features guarantee safe reactions under pressure.
High torque magnetic drive ensures efficient mixing and stirring of low to high viscosity process media as well as excellent heat transfer.
The modular setup of the kiloclave system allows changing or upgrading for new tasks at any time. A wide range of accessories for feeding of liquids / solids / gas, a fast action closure device, and others like catalyst baskets, etc. are available – talk to us to define the right setup for your specific need.
Compact systems for reactors up to 5 liters are versoclave- and polyclave inert, polyclave inert with possibility for glass reactors, see also full metal versions kiloclave, versoclave, polyclave.
Standard package
- Stand with hydraulic lift and tilt mechanism
- Pressure vessel in glass lined steel with suitable stirrer shaft, stirrer, baffle, Pt-100 and bottom valve
- Cover plate with 7 openings and standard setup:
Swagelok fittings with bursting disc, manometer and 2 valves - ATEX stirrer drive with adjustable transmission and high torque magnetic coupling bmd 250«i»
- Tools and spare parts
Standard options
- cyclone 250 i magnetic stirrer drive
- 60 bar Tantalum version
- measure and control systems
- wide range of accessories
- Hydrogenation reactor
- Polymerization reactor
- Synthesis reactor
- Catalyst testing / evaluation
- Catalytic reactor
- Crystallization
- Chemical research
- Petrochemical research
- Corrosion measurement
- Upstream research
- Biomass research
- Biopolymer research
- Biorefinery research
- Biofuels research
- Zeolite synthesis
- Nanoparticle synthesis
- API synthesis
- Corrosion testing autoclave
