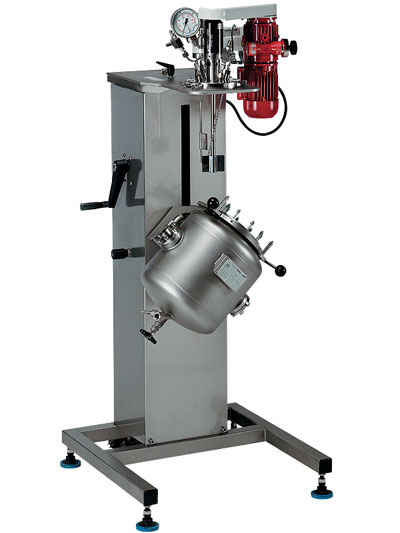

kiloclave
Laboratory pressure reactor system
Reactor volume: 0.5 – 20.0 liter
Pressure: -1 (FV) to +60 / 200 bar
Temperature: -20 °C to +250 °C
Material: stainless steel, Hastelloy, Glass lined steel
This multipurpose pressure reactor system is designed for the use of large steel pressure vessels. The hydraulic vessel lift with tilt function makes opening and closing as well as cleaning of the vessel very easy. Safety features guarantee safe reactions under pressure.
The stainless steel or Hastelloy reactors ensure high resistance against acids. Visual process control and monitoring is also possible under high pressure by using steel pressure vessels with sight glasses. Various low to high torque magnetic drives ensure efficient mixing and stirring low to high viscosity process media as well as excellent heat transfer.
The modular setup of the kiloclave system allows changing or upgrading for new tasks at any time.
A wide range of accessories for feeding of liquids / solids / gas, a fast action closure device, and others like catalyst baskets, etc. are available – talk to us to define the right setup for your specific need.
Standard package
- Stand with hydraulic lift and tilt mechanism
- Pressure vessel in steel / Hastelloy with suitable stirrer shaft, stirrer, baffle, Pt-100 and bottom valve
- Cover plate with 7 openings and standard setup:
- Swagelok fittings with bursting disc, manometer and 2 valves
- ATEX stirrer drive with adjustable transmission and high torque magnetic coupling bmd300
- Tools and spare parts
Standard options
- Safety Fast Action Closure for vessel
- cyclone 300 magnetic stirrer drive
- Electric heating / water cooling
- Measure and control systems
- Wide range of accessories
- Metal-free kiloclave inert
- 100 / 200 bar version
- Hydrogenation reactor
- Polymerization reactor
- Synthesis reactor
- Catalyst testing / evaluation
- Catalytic reactor
- Crystallization
- Chemical research
- Petrochemical research
- Corrosion measurement
- Upstream research
- Biomass research
- Biopolymer research
- Biorefinery research
- Biofuels research
- Zeolite synthesis
- Nanoparticle synthesis
- API synthesis
- Corrosion testing autoclave
