limbo ls

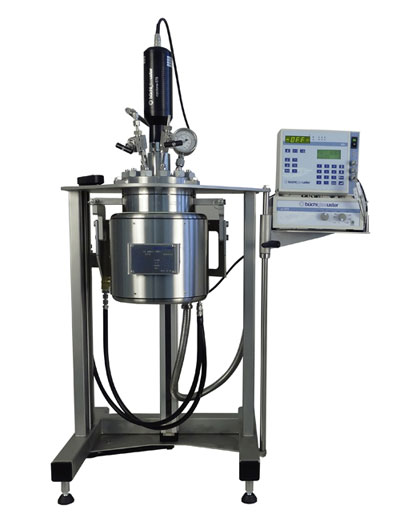

Laboratory high pressure reactor system
Reactor volume: 0.5 – 5.0 liter
Pressure: -1 (FV) to +350 bar
Temperature: -20 °C to +350 °C
Material: stainless steel, Hastelloy
This high pressure reactor system is designed for the use of interchangeable steel pressure vessels. Safety features guarantee safe reactions under pressure.
The stainless steel or Hastelloy reactors ensure high resistance against acids. The high torque magnetic drive ensures efficient mixing and stirring of the process media as well as excellent heat transfer.
The system is equipped with a lifting device for vessel and electric heating.
The modular setup of the limbo ls system allows changing or upgrading for new tasks at any time.
A wide range of accessories is available – talk to us to define the right setup for your specific need.
Standard package
- Reactorframe with Lift / full accesss to reactor
- Powerful cyclone 075 magnetic drive including controller
- Insulated Steel – / Hastelloy Pressure Reactor (Typ 3E) with electric heating and cooling (by tap water)
- btc PID reactor temperature controller
- Coverplate with 7 openings, pressure gauge, 2 valves, rupture disc
- Tools and spare parts
Standard Options
- Measure and control systems
- Wide range of accessories
- Hydrogenation reactor
- Catalyst testing / evaluation
- Catalytic reactor
- Materials testing
- Chemical research
- Super-Critical reactions / extractions
- Corrosion measurement
- Hydrogen sulfide (H₂S) scavenger testing
- Petrochemical research
- Biomass research
- Biorefinery research
- Biomass-to-liquids (BTL) research
- Biofuels research
- Thermal pressure hydrolysis (TPH)
- Corrosion testing autoclave
limbo reactors- Catalyst testing reactor
- Reactor accessories
