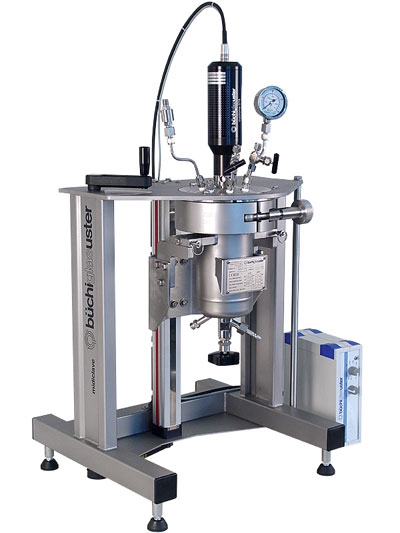

midiclave
Laboratory high pressure reactor system
Reactor volume: 0.1 – 1.0 liter
Pressure: -1 (FV) to +200 bar
Temperature: -20 °C to +300 °C
Material: stainless steel, Hastelloy
This high pressure reactor system is designed for the use of interchangeable steel pressure vessels. Safety features guarantee safe reactions under pressure.
The stainless steel or Hastelloy reactors ensure high resistance against acids. Visual process control and monitoring is also possible under high pressure by using steel pressure vessels with sight glasses. Various low to high torque magnetic drives ensure efficient mixing and stirring low to high viscosity process media as well as excellent heat transfer. The fast action closure and vessel lift makes changing vessels quick and easy without the use of tools.
The modular setup of the midiclave system allows changing or upgrading for new tasks at any time.
A wide range of accessories for feeding of liquids / solids / gas, a fast action closure device, reactor lift and others like catalyst baskets, etc. are available – talk to us to define the right setup for your specific need.
Standard package
- Stand with open access from all sides
- Reactor Lift
- special Safety Fast Action Closure
- Pressure vessel (Type 3 & 4) with suitable stirrer shaft, stirrer, baffle, Pt-100 and bottom valve
- Cover plate with 7 openings and standard setup:
- Swagelok fittings with bursting disc, manometer and 2 valves
- Stirrer drive «cyclone 075» with integrated magnetic coupling, incl. controller «cc075»
- Tools and spare parts
Standard options
- cyclone 300 magnetic stirrer drive
- ATEX stirrer drive
- Electric heating / water cooling
- Measure and control systems
- Wide range of accessories
- Floor stand
- Hydrogenation reactor
- Polymerization reactor
- Synthesis reactor
- Catalyst testing / evaluation
- Catalytic reactor
- Chemical research
- Crystallization
- Corrosion measurement
- Hydrogen sulfide (H₂S) scavenger testing
- Petrochemical research
- Biomass research
- Biopolymer research
- Biorefinery research
- Biomass-to-liquids (BTL) research
- Biofuels research
- Thermal pressure hydrolysis (TPH)
- Corrosion testing autoclave
