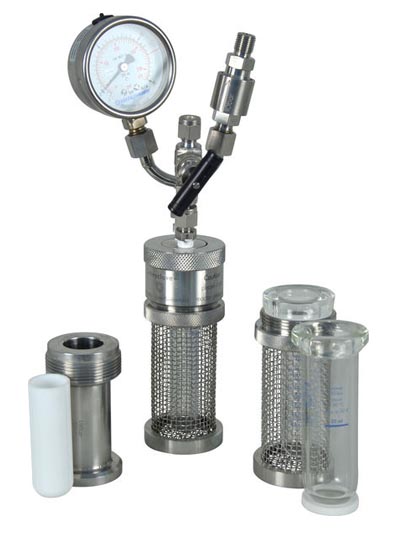

tinyclave steel
Laboratory pressure reactor system
Reactor volume: 10 – 25 ml
Pressure: -1 (FV) 10 /100 bar
Temperature: -20 °C to +200 / 300 °C
Material: Borosilicate glass 3.3, stainless steel, Hastelloy, PFTE
This pressure reactor system is designed for the use of interchangeable pressure vessels in glass, steel, Hastelloy, Teflon. Safety features guarantee safe reactions under pressure.
The glass reactors ensure high resistance against acids, while allowing visual process control and monitoring.
A wide range of accessories is available – talk to us to define the right setup for your specific need.
Standard package
- Vessel holder with protective mesh
- Glass pressure vessel
- Union nut
- Cover plate with 2 openings and standard setup:
- Swagelok fittings with bursting disc, manometer and 1 valve
- Tools and spare parts
- Hydrogenation reactor
- Polymerization reactor
- Synthesis reactor
- Catalyst testing / evaluation
- Catalytic reactor
- Crystallization
- Chemical research
- Petrochemical research
- Biopolymer Research
- Nanoparticle synthesis
safe small-scale pressure reactions
