UWave-2000 Multi-functional

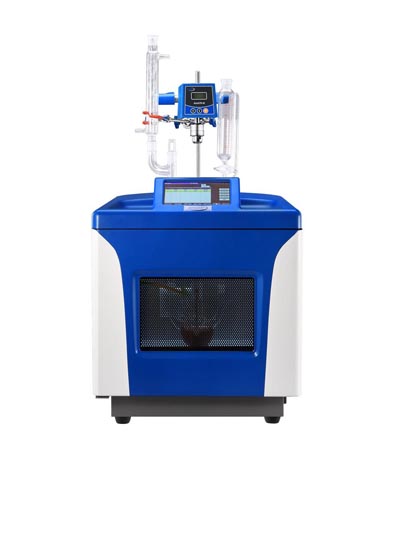

UWave-2000 Multi-functional Microwave Synthesis System
UWave-2000 Multifunctional Microwave Chemistry Reaction Workstation integrates the atmospheric pressure and pressurized reactions, microwave heating, ultrasonic wave and ultraviolet irradiation and other functions, and provides the workstation with flexibility and reliability for the microwave chemical research. UWave-2000 has an intelligent operating system, and 7-inch touch screen control is simple and friendly. It realizes the multi-energy and multi-functional free combination and collocation with the modular design, giving inspiration to your experiment. It can conduct the 2000ml open vessel reaction and 500ml pressurized reaction maximally, thus can help researchers conduct the mass production experiment. Regardless of organic extraction, pharmaceutical research, protein chemistry, novel material science, research of the graphene, polymer synthesis and many other fields, UWave-2000 will provide various imaginations and feasibility of the microwave chemical research.
Unique advantage：
Good innovation: Integrate the atmospheric pressure and pressurized reaction, microwave, ultrasonic wave and ultraviolet irradiation and other functions, giving full flexibility;
High reproducibility: Microwave automatic frequency conversion control, dual temperature control technology, and piezoelectric crystal pressure can ensure the accurate record and representation of each reaction;
Severe safety: Pressurized mode, intelligent safety pressure control system, real-time over pressure alarm and active pressure relief, outer vessel with composite fiber and other safety protection measures at the highest level;
Friendly operation: 7-inch color LCD touch screen, intelligent software, safe and remote control, and reaction process videography facility;
Reliable durability: Multi-layer Teflon coating 316L stainless steel chamber and durable reaction container material ensure that all kinds of chemical reactions proceed smoothly;
Reliable experience: 20 years’ industry experience, ISO and CE certificated, and national leading number of users.
Three energy sources – microwave, ultrasonic, and ultraviolet irradiation can be free combined and work together, and software control timing on and off, achieving the synergistic effect by multi energies. UWave-2000 adopts immersion ultrasonic launcher, with an adjustable scope of ultrasound power: 0 – 800W, frequency of 28KHZ, and automatic frequency sweeping and frequency locking. With two sets of ultraviolet source (standard UV lamp power is 300W, dominant wavelength is 365nm, while optional UV lamp power is 100W, and dominant wavelength is 254nm), it can conduct selective photochemical research. UWave-2000 is equipped with multiple reaction vessels, 50-2000ml glass flasks can meet the routine use, and optional multi-standards quartz reaction flasks can meet photochemical reaction under the ultraviolet radiation.
UWave-2000 can conduct the high-pressure sealed reaction, and is equipped with three kinds of sealed reaction vessels -100ml, 200ml and 500ml, solving the amplification process from the laboratory research to the production verification. The sealed reaction vessel can meet the long-term reaction process under 230°C and 2Mpa, greatly expanding the temperature pressure conditions of atmospheric pressure reaction. Under pressurized mode, UWave-2000 has an intelligent safety pressure control system for realizing the real-time over pressure alarm and active pressure relief, and external vessel with composite fiber and high strength metal frame ensure the safe and smooth reaction.
High-precision dual-channel infrared temperature sensor and platinum resistor temperature sensor can switch automatically, with infrared temperature measurement range of 0 – 900°C (standard configuration of 300°C), platinum resistor temperature measurement range of 0 – 250°C and precision of ±1°C. The pressurized reaction is equipped with the patented piezo-electric crystal (pressure control range of 0 – 5MPa, precision of ±0.01MPa), realizing the pressure monitoring of reaction process and ensuring the safe and comfortable experiment. The same system can conduct the microwave atmospheric pressure and pressurized reaction and the software can judge the type of the reaction vessel automatically for preventing the wrong operation.
UWave-2000 is equipped with mechanical and magnetic stirring device. Digital constant speed mechanical stirring is especially applicable to the high viscosity liquid reaction, with rotation speed of 30 – 1600r/min. It can realize real-time speed regulation and displays the rotation speed (±10r/grade),with torque of 300 N.m. It can stir clockwise or counter-clockwise, with mechanical stirring rod material of PEEK or quartz. Built-in magnetic stirring rotation speed is 0~800r/min, speed program is adjustable and of real-time display.
UWave-2000 is equipped with intelligent control software. It can transmit the reaction parameters and curves by connecting with the computer, and can record each reaction process and curve unlimitedly. It can conduct real-time control or change the reaction parameters of the host through the computer, realizing user’s programmed on or off of three energy sources – microwave, ultrasonic, and UV radiation. 7-inch color LCD touch screen can make accurate setting and real-time display of various reaction parameters and curves, and conduct the real-time display of reaction color image. The chamber is equipped with color recording system, which can realize real-time display of reaction image through the color LCD screen, and can output the image signal for facilitating user’s recording or external connection.
It has a large volume 316L stainless steel industrial oven chamber. The extra-large oven chamber with high-strength anti-corrosive coating treatment can meet the maximum 2000ml atmospheric pressure reaction and the oven chamber is equipped with high-speed fan, with air rate of 3m3/min. 3-gear speed change will be made automatically according to the reaction situation. It is equipped with reflux condensation, dropping liquid, water diversion and other devices, and is equipped with inert shielding gas access pipe. This product passes IS09001:2008 and EU safety CE certification.
